China High Accuracy 4 Axis Automatic Screw Locking Robot with Feeder wholesale

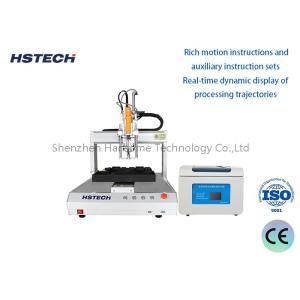

High Accuracy 4 Axis Automatic Screw Locking Robot with Feeder

Name: High Accuracy 4 Axis Automatic Screw Locking Robot with Feeder
Brand: HSTECH
Price: 1 USD

Ask Latest Price

Brand Name :HSTECH

Model Number :HS-SL5331

Certification :CE

Place of Origin :China

MOQ :1 set

Price :Negotiable

Payment Terms :T/T, Western Union, MoneyGram

Supply Ability :100pcs per month

Delivery Time :7~9 work days

Packaging Details :Wooden package, foam inside

Product name :4Axis Automatic Screw Locking machine

Feeding :Suction feeding

Axis :4axis

Screws compatible :M1-M6, or customized

Moving Range :500*300*300*100mm

Port :Shenzhen

Oem :Yes

Warranty :1 year

Contact Now

Add to Cart

View Product Description

High Accuracy 4 Axis Automatic Screw Locking Robot with Feeder

Introduction

The screw machine is a automtic equipment, with 4 axis moving system, double working station, single feeder, the whole machine composed of a feeding system and a lock-locking system, the feeding part responsible for screw-arrangement machine, is a relatively simple type of screw arranged in a row for the purpose of improving work efficiency. This screw lock machine is a automation equipment, widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Features

1, Suction feeding, single screw feeder, also can customized to double feeder.
2, Using high quality electric screwdriver for Z axis moving.
3, 4 Axis operation, moving range 500*300*300*100mm.
4, Double working station, the operator can loading the product one by one, great improve the production efficiency and reduce labor cost.

5, Accurate torsion, convenient adjustment, guaranteed the production quality.

6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).

7, With the function of leak detection, if a screw did not fill in place it can fill continually or alarm.

8, The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell

Automatic locking screw machine performance advantages

1. Screws below M2 can be completed by vacuum suction or magnetic suction conveyor.
2. Screws with pads can be completed with automatic locking screw machine.
3. Screw tooth length is less than or equal to the screw head neck, you can choose the vacuum suction or magnetic suction conveyor to complete.
4.10 torque screws above the use of wind batch, the machine automatically locking.
5. Only manual loading and unloading, automatic locking screw machine to complete the process of automatic locking screws.
